Magnum Pathfinder 500w
$1,999.00

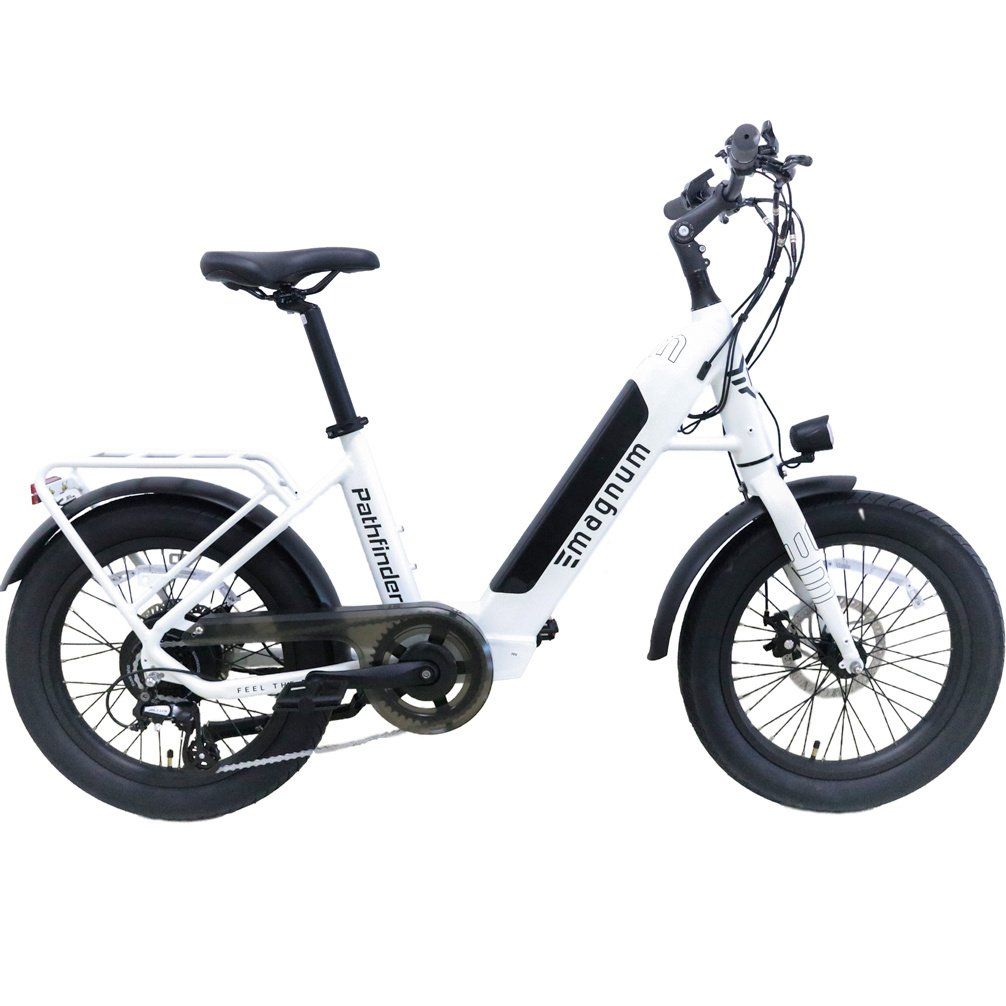

The Magnum Pathfinder is a versatile e-bike which can be used for commuting, recreation, exercise and more. The unisex step-through frame is well-suited for riders across a broad range of height and physical ability.
Magnum Pathfinder 500w
Product Details
Brand: MAGNUM
Tags: Pathfinder,hub drive,magnum,throttle
Work hard, play hard. The Magnum Pathfinder is a versatile e-bike which can be used for commuting, recreation, exercise and more. The unisex step-through frame is well-suited for riders across a broad range of height and physical ability.
Body Position: Upright | Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3); *Throttle can be removed for Class 1 | Max Load: 265lbs | Includes: One Year Limited Warranty
Description
PATHFINDER 500W CALLOUT FEATURES
- The 20″ x 3” fat tire wheels are designed for performance and comfortability when riding over most terrain.
- The fully-integrated 48v / 13ah / 624wh battery blends in smoothly with the frame for a sleek look, and provides for a 30 – 50 mile range depending on a number of variables like rider weight, cargo weight, terrain, wind direction, and pedal assist level.
- The rear geared hub motor packs 48v / 500w of power with 5 modes of pedal assist, for speeds of up to 25 mph.
- Integrated powerful front headlight and rear light.
- Tektro Hydraulic disc brakes to bring you to a smooth, controlled stop.
ADDITIONAL FEATURES
- Quick release seat post
- 7 speed shimano gear shifter
- Chain guard
- Front fender to protect you from dirt and debris
- 3” wide fat tires to keep your ride comfortable
- Welded rear rack
ELECTRONIC DETAILS
- Motor Type: Rear Geared Hub Motor
- Motor Output: 48v 500w
- Battery Voltage / Amp Hours / Watt Hours: 48v / 13ah /624wh
- Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
- Estimated Charge Time: 6 Hrs
- Estimated Min And Max Range: 30 To 50 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.)
- Display Type: Bigstone H102 Display
- Display Readouts: Speed (mph or kmh), Frontlight on/off, Assist Level 0-5, Battery Level, Odometer, Trip Distance, Range (estimated remaining mileage)
- Drive Modes: Pedal Assist, Twist Throttle
- Max Speed: 25mph
- Lights: Integrated Front and Rear Light controlled by the display (power on/off)
BICYCLE DETAILS
- Total Weight: 50lbs
- Battery Weight: 8lbs
- Frame Type: Low Step
- Fork Details: Fixed Alloy
- Gearing Details: Shimano Altus 7 Speed
- Shifter Details: Shimano Altus
- Stem: Adjustable Alloy
- Brake Details: Tektro Hydraulic disc brakes
- Saddle: VELO saddle
- Seatpost: Rigid
- Rack / Fenders: Rear rack, front and rear fenders
- Tires: Innova 20″ fat tire
- Wheel Size: 20″ x 3″
